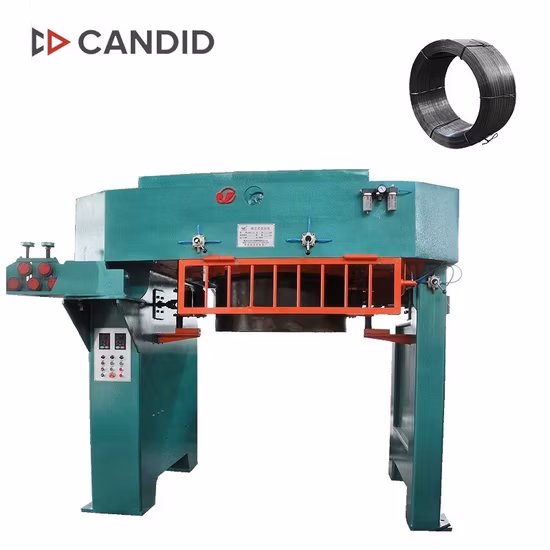

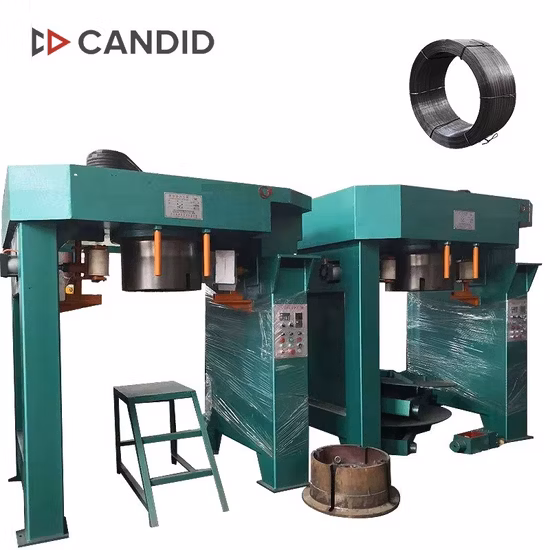

Vertical Type Full Automatic Inverted Binding Copper Wire Nail Drawing Machine
Vertical Wire Drawing Machine Mechanical description Accessory Equipment Guarantee and after-service: 1. Guarantee time:
Basic Info.
| Max.Inlet Wire Dia. | 0.45-2.8mm |
| Block Dia. | 350/280/150 |
| Max. Number of Block | 17 |
| Condition | New |
| Material | Low Carbon Steel/Medium Carbon/High Carbon Steel |
| Max. Drawing Speed | 7m/S |
| Transport Package | Covered in Film |
| Specification | 2400*1400*1200mm |
| Trademark | CANDID |
| Origin | China |
| HS Code | 84633000 |
| Production Capacity | 10 Sets/Month |
Product Description
Vertical Wire Drawing Machine
Mechanical description
| Type | 560 | 550 | 450 | 350 |
| Material Intensity | δb≥110kg/mm2 | 120kg/mm2 | 128kg/mm2 | δb≤140kg/mm2 |
| Max. Dia. Of Inlet Wire | 6.5mm-4.4mm | 6.5mm | 4mm | 2.6-1.5mm |
| Min. Dia. Of Outlet Wire | 2.6mm-1.8mm | 2.2mm | 1.6mm | 1.2-0.8mm |
| Block | 1 | 1 | 1 | 1 |
| Max. average condensation | 0.3 | 20% | 20% | 21% |
| Total Condensation | 78-88.5% | 78% | 77.90% | 78% |
| Max. Speed of Block | 245m/min | 260m/min | 280m/min | 200m/min |
| Total Power | 22/30kw | 18.5/22kw | 11/15kw | 5.5/7.5kw |
Accessory Equipment
| Name | Model | Range of Dia. |
| Discharging Machine | ||
| Pointing Machine | F-96 | 6.5-1.5mm |
| Pointing Machine | F-80 | 3.5-1.0mm |
| Butt-Welding Machine | UN-10 | 8--2mm |
| Butt-Welding Machine | UN-3 | 6.5-1.5mm |
| Butt-Welding Machine | UN-1 | 3.5-1.0mm |
| Automatic Discharging Machine | XB-600 | capacity 800kg |
| Automatic Discharging Machine | XB-360 | capacity 400kg |
| I Type Spool Reeling Machine | SG-800 | capacity 800kg |
| I Type Spool Reeling Machine | SG-630 | capacity 500kg |
| Descaling Machine | SW650 | |
| Motorless Descaling Machine | with steel brush | |
| Well Type Furnace | RJ-90-9 |
Guarantee and after-service:
1. Guarantee time:one year since machine was at buyer' factory within 12 months against B/L date2. Within guarantee time, if any components are broken under normal condition, we can change for free.3. We can send our best technician to buyer's factory for installation, debugging and training.4. Complete installation instructions, circuit diagram, manual operations and machine layout.5. Technical support by e-mail.
