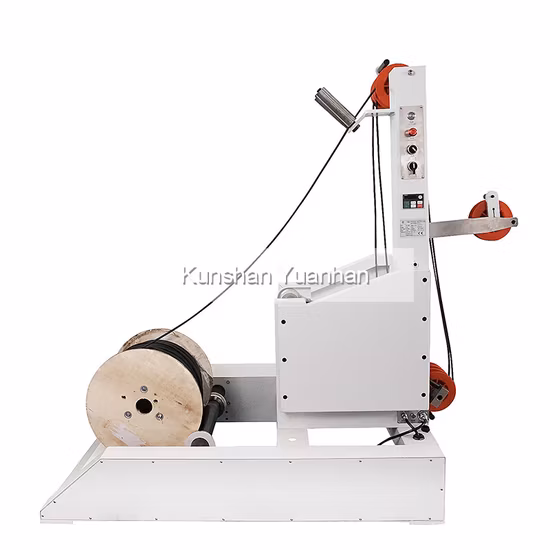

Wire Pay off Machine Cable Pre Feeding Machine Automatic Wire Feeder Machine

Basic Info.

Model NO.	YH-680
Coil Clamping	Adaptive Drive Wheel with a Maximum Width of 680mm
Dimensions	1,260*1,110*750mm (L*W*H)
Weight	180kg
Tension Adjustment	Adjust The Tension of The Cable
Speed	Depends on The Wire Stripping Machine
Model	Yh-680W
Voltage	220V
Main Body Material	High Quality National Standard Rectangular Tube
Coil Size	300-700mm Diameter
Transport Package	Double-Layer Export Carton
Specification	1, 260*1, 110*750mm (L*W*H)
Trademark	yuanhan
Origin	China
HS Code	8479819000
Production Capacity	L=100mm, 3000-7000PCS/H

Product Description

Automatic Cable Pre Feeding System Cable Prefeeder Equipment Wire Feeding Device Cable Wire Pay off Machine
Automatic Wire Feeder MachineYH-680W automatic wire feeder machine delivers the wire feeding results you need for maximizing automated wire harness processing productivity and quality. Its maximum feeding speed is 70 m/min, and the maximum processing wire diameter is 16mm.

Specifications:

• This fully automatic wire feeder eliminates the trouble of manual wire feeding. It is suitable for various wires and cables.

• Main body material: welded with high quality national standard rectangular tube, the structure is firm and the appearance is beautiful

• Maximum feeding speed is 70 m/min, and maximum wire diameter is 16mm

• Coil size: 300-700mm diameter (customer needs to provide specific coil size)

• Wire clamp: adaptive active wheel, maximum width 680mm

• Maximum coil weight: 150KG

Model	YH-680W
Voltage	220V
Main body material	high quality national standard rectangular tube
Take off power	0.55kw domestic brand geared motor with vector inverter, inverter control line speed, maximum line speed 70m/min, maximum wire diameter 16mm
Cable lift	Manual handling of the reel
Coil size	300-700mm diameter (customer needs to provide specific coil size)
Coil clamping	Adaptive drive wheel with a maximum width of 680mm
Max coil weight	150KG
Tension wheel	The tension wheel is divided into the upper fixed wheel set (3 pcs) and the lower moving wheel set (2 pcs), and the tension wheel diameter is 140mm.
Speed	When the computer wire stripper works, the tension wheel moves accordingly, and the potentiometer rotates through the sprocket, and the potentiometer feeds back the signal to the inverter to control the speed of the pay-off motor, thereby controlling the speed of the line to be synchronized with the computer stripping machine.
Tension adjustment	Increase or decrease the weight on the chain to adjust the tension of the cable
Dimensions	1,260*1,110*750mm (L*W*H)
Weight	180KG

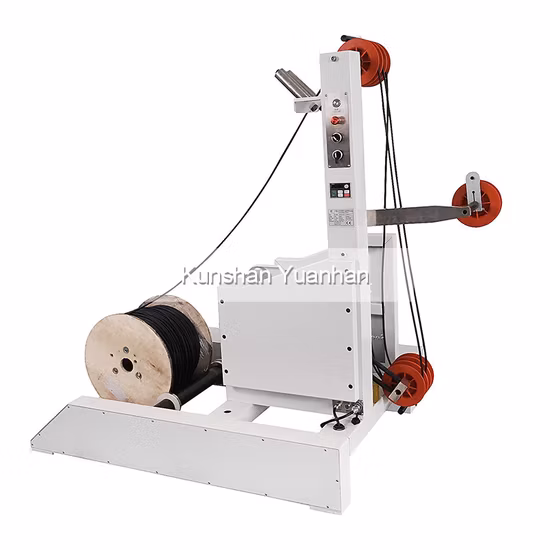

MACHINE PHOTOS

Other Model

If you are not so sure of if it's ok, please contact us, we will recommend the correct model to you! Tested video of your sample is no problem too.

Any questions, please feel free to contact US! Thank you !
