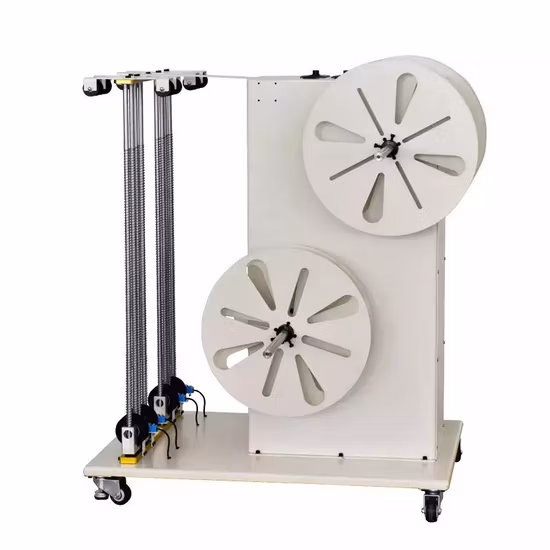

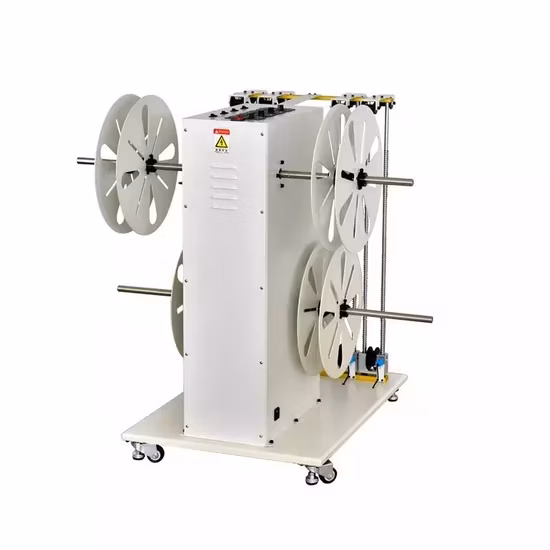

Automatic Cable Wire Feeding Machine Four Shaft Continuously Variable Speed Pay

Basic Info.

Model NO.	SR-400A
Origin	China

Product Description

Specification

Power	220V
Size	860*1000*1030mm
Motor	120W
Load weight	Single axis15KG
Tensioning disc	400MM
Axis	20mm
Brake	Sensor brake
Induction block	0.5kg
Wire wheel	V-shaped 2-6mm
Applicable wire	round wire, flat cable, sheathed cable

Features

(1) This machine is an automatic wire feeding machine, which is used in conjunction with a fully automatic computer wire stripping machine, eliminating the need for manual threading. You only need to fix the whole coil of wire on the pay-off rack, start the motor when the wire needs to be fed, and it will automatically stop when the wire is slack to a certain degree.

(2) This machine is compact in design and convenient in setting and clamping the spool, which can greatly reduce labor intensity and improve production efficiency.

(3) It can be used with any type of automatic terminal crimping machine or computer wire cutting machine.

(4) It can be modified and customized according to the special requirements of customers.

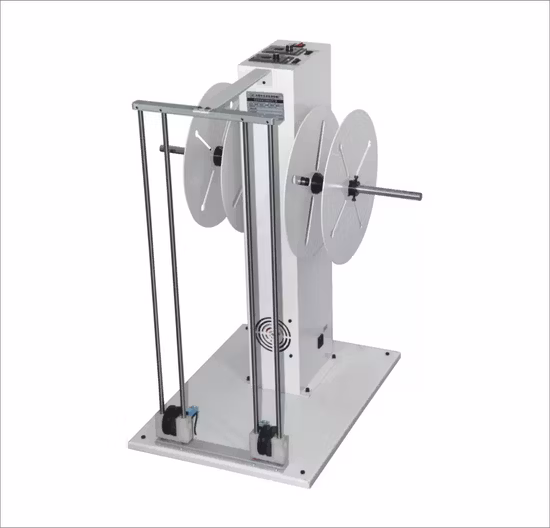

More Machines For Options
Model	SR-300	SR-300A dual motor	SR-302 Biaxial	SR-400 heavy load
Size	550x500x750mm	500x900x920mm	700x810x960mm	1700x1400x1500mm
Maximum load	25KG	50KG	50KG	200KG, customized up to 2t.
Wattage	120W	240W	240W	1.5KW
Voltage	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ	AC220V 50/60HZ
Weight	38KG	50KG	60KG	180KG

We have other machine.If you are interested,please contact us
